P600 Table Tracker WirelessPagingSystems

ZisaCall Table Tracker Systems

Excellent P600, help your business better

Descriptions



ZISACALL Table Tracker system is a two-way paging system that widely used inbars, restaurants, Tea&coffee houses, KTV club, casinos,and other places where guests need to be served.Guests just need to put the locator on table,waiter can see the guest’s location through the display terminal,and go to supply service.Guest also can press the button on the locator to call waiter.



Features:

  • Eliminates noisy overhead paging
  • Eliminates walkaway and lost revenues
  • Maintains a quiet and pleasant atmosphere
  • Faster turn around of services
  • Faster service means fewer complaints
  • Increases productivity
  • Increases service quality
  • Discretely track waiting times

Includes:

  • 1/2 Mile Transmitter Line of Sight
  • Three Year Warranty
  • Reliable Paging Technology
  • Easy Installation
  • Stack and Charge Design
  • Over-The-Air Programming
  • Auto Locate Feature
  • Tough, Durable, Waterproof & Dust Proof Casing
  • Centre monitor display
  • Expandable up to 999 pagers location

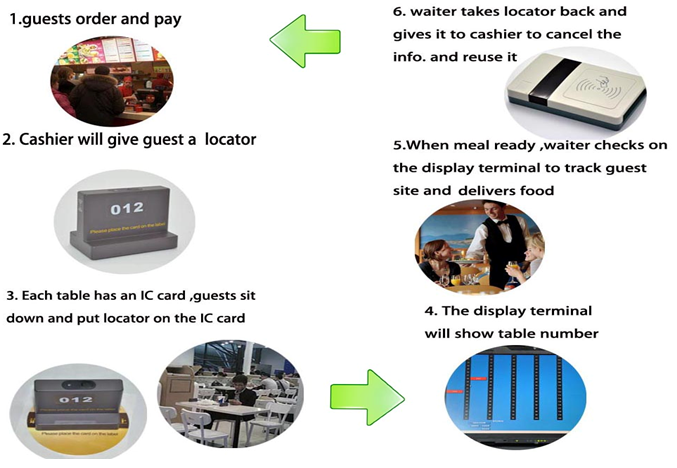

Applications-How to use

Application Scene

Order info:

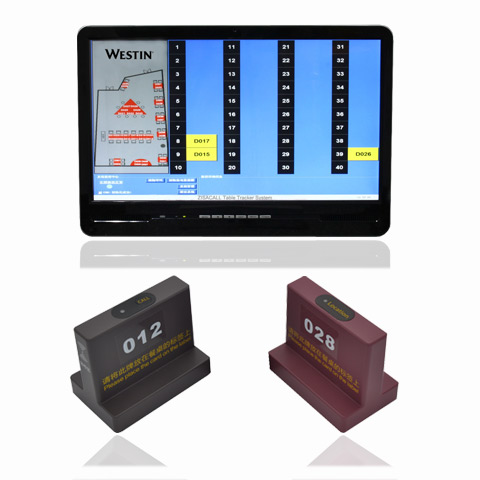

Display Terminal (Touch Screen, optional item)

ZCD600

Processor: Intel Atom D525

1,60Gdual core;

Display Screen: 21.5 Inch Touch

Screen; RAM: 1GBDDR2;

RigidDisk:Solid State Drives;

Max Power: 40W.

Table tracker System software (Basic part)



ZCP600





To control the whole system.

Base Station (Basic part)

ZCB600

















Dimension: 236*142*40mm;

Frequency: ISM 433MHz;                                                                  Range: 50 meters, can pass

through 2~4 walls;
Material :high quality ABS plastic;
Color: cream-coloured;
Power: 9V DC;

Interface: serial port.

Card Canceller (Basic part)

ZCX600

















Dimension:120*78*26mm

Frequency: ISM 433MHz;                                                                  Range: 50 meters, can pass

through 2~4 walls;
Material :high quality ABS plastic;
Color: cream-coloured;

Alert: buzzer.

IC Card

ZCC600



Dimension: 105*1.2mm;

Material: Thin PVC;

Chip:standard IC card chip;



 Locator



ZCL600

























Frequency: ISM 433MHz;                                                                  Range: 50 meters, can pass

through 2~4 walls;

Power: rechargeable battery.Low

battery indicator;                                                                 Color: Brown or Amaranth;  Other: waterproof&oilproof.

Locator( with call function)

ZCL600C

Frequency: ISM 433MHz;                                                                  Range: 50 meters, can pass

through 2~4 walls;

Power: rechargeable battery.

Low battery indicator;

Color: Brown or Amaranth;

Other: waterproof&oilproof,

can call the waiter.
